edu.wpi.first.wpilibj2.command.SequentialCommandGroup Class Reference

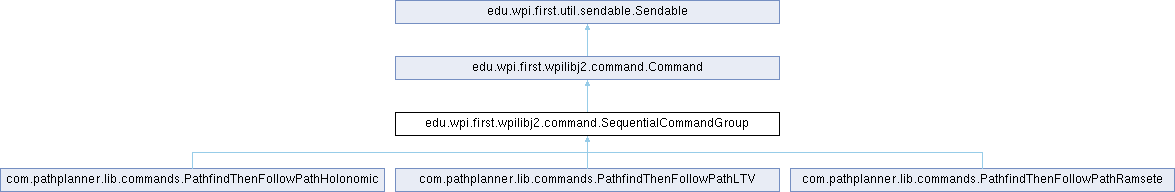

Inheritance diagram for edu.wpi.first.wpilibj2.command.SequentialCommandGroup:

Public Member Functions
	SequentialCommandGroup (Command... commands)
final void	addCommands (Command... commands)
final void	initialize ()
final void	execute ()
final void	end (boolean interrupted)
final boolean	isFinished ()
boolean	runsWhenDisabled ()
InterruptionBehavior	getInterruptionBehavior ()
void	initSendable (SendableBuilder builder)
Public Member Functions inherited from edu.wpi.first.wpilibj2.command.Command
Set< Subsystem >	getRequirements ()
final void	addRequirements (Subsystem... requirements)
String	getName ()
void	setName (String name)
String	getSubsystem ()
void	setSubsystem (String subsystem)
ParallelRaceGroup	withTimeout (double seconds)
ParallelRaceGroup	until (BooleanSupplier condition)
ParallelRaceGroup	onlyWhile (BooleanSupplier condition)
SequentialCommandGroup	beforeStarting (Runnable toRun, Subsystem... requirements)
SequentialCommandGroup	beforeStarting (Command before)
SequentialCommandGroup	andThen (Runnable toRun, Subsystem... requirements)
SequentialCommandGroup	andThen (Command... next)
ParallelDeadlineGroup	deadlineWith (Command... parallel)
ParallelCommandGroup	alongWith (Command... parallel)
ParallelRaceGroup	raceWith (Command... parallel)
RepeatCommand	repeatedly ()
ProxyCommand	asProxy ()
ConditionalCommand	unless (BooleanSupplier condition)
ConditionalCommand	onlyIf (BooleanSupplier condition)
WrapperCommand	ignoringDisable (boolean doesRunWhenDisabled)
WrapperCommand	withInterruptBehavior (InterruptionBehavior interruptBehavior)
WrapperCommand	finallyDo (BooleanConsumer end)
WrapperCommand	finallyDo (Runnable end)
WrapperCommand	handleInterrupt (Runnable handler)
void	schedule ()
void	cancel ()
boolean	isScheduled ()
boolean	hasRequirement (Subsystem requirement)
WrapperCommand	withName (String name)
Public Member Functions inherited from edu.wpi.first.util.sendable.Sendable

Additional Inherited Members
Protected Member Functions inherited from edu.wpi.first.wpilibj2.command.Command
	Command ()
Protected Attributes inherited from edu.wpi.first.wpilibj2.command.Command
Set< Subsystem >	m_requirements = new HashSet<>()

Detailed Description

A command composition that runs a list of commands in sequence.

The rules for command compositions apply: command instances that are passed to it cannot be added to any other composition or scheduled individually, and the composition requires all subsystems its components require.

This class is provided by the NewCommands VendorDep

Constructor & Destructor Documentation

SequentialCommandGroup()

edu.wpi.first.wpilibj2.command.SequentialCommandGroup.SequentialCommandGroup

(

Command...

commands

)

Creates a new SequentialCommandGroup. The given commands will be run sequentially, with the composition finishing when the last command finishes.

Parameters

commands

the commands to include in this composition.

Member Function Documentation

addCommands()

final void edu.wpi.first.wpilibj2.command.SequentialCommandGroup.addCommands

(

Command...

commands

)

Adds the given commands to the group.

Parameters

commands

Commands to add, in order of execution.

end()

final void edu.wpi.first.wpilibj2.command.SequentialCommandGroup.end

(

boolean

interrupted

)

The action to take when the command ends. Called when either the command finishes normally, or when it interrupted/canceled.

Do not schedule commands here that share requirements with this command. Use andThen(Command...) instead.

Parameters

interrupted

whether the command was interrupted/canceled

Reimplemented from edu.wpi.first.wpilibj2.command.Command.

execute()

final void edu.wpi.first.wpilibj2.command.SequentialCommandGroup.execute

(

)

The main body of a command. Called repeatedly while the command is scheduled.

Reimplemented from edu.wpi.first.wpilibj2.command.Command.

getInterruptionBehavior()

InterruptionBehavior edu.wpi.first.wpilibj2.command.SequentialCommandGroup.getInterruptionBehavior

(

)

How the command behaves when another command with a shared requirement is scheduled.

Returns

a variant of InterruptionBehavior, defaulting to kCancelSelf.

Reimplemented from edu.wpi.first.wpilibj2.command.Command.

initialize()

final void edu.wpi.first.wpilibj2.command.SequentialCommandGroup.initialize

(

)

The initial subroutine of a command. Called once when the command is initially scheduled.

Reimplemented from edu.wpi.first.wpilibj2.command.Command.

initSendable()

void edu.wpi.first.wpilibj2.command.SequentialCommandGroup.initSendable

(

SendableBuilder

builder

)

Initializes this Sendable object.

Parameters

builder

sendable builder

Reimplemented from edu.wpi.first.wpilibj2.command.Command.

isFinished()

final boolean edu.wpi.first.wpilibj2.command.SequentialCommandGroup.isFinished

(

)

Whether the command has finished. Once a command finishes, the scheduler will call its end() method and un-schedule it.

Returns

whether the command has finished.

Reimplemented from edu.wpi.first.wpilibj2.command.Command.

runsWhenDisabled()

boolean edu.wpi.first.wpilibj2.command.SequentialCommandGroup.runsWhenDisabled

(

)

Whether the given command should run when the robot is disabled. Override to return true if the command should run when disabled.

Returns

whether the command should run when the robot is disabled

Reimplemented from edu.wpi.first.wpilibj2.command.Command.

---

The documentation for this class was generated from the following file:

• D:/SDASVN/2024/RaspberryPi/VSCode/Source/edu/wpi/first/wpilibj2/command/SequentialCommandGroup.java
